At Stanley Package, we don’t just manufacture flexible packaging; we engineered physical and chemical barriers for your brand. Our Quality Control (QC) protocol strictly adheres to ISO 9001 standards, ensuring that every batch maintains 100% performance under high-speed filling lines and extreme logistics conditions.
Phase I: Physical Validation of Raw Materials (Pre-Production)
1. Substrate Property Verification
- Focus: Thickness tolerance (precise to ±2μm), tensile strength, and elongation at break.
- Technical Detail: We use precision micrometers to sample PET, PE, and AL substrates, ensuring the film remains dimensionally stable under high-speed tension.
2. Surface Tension (Dyne Level) Testing
- Logic: Printing and lamination integrity depend entirely on surface energy.
- Standard: We mandate a dyne level of ≥38 dyn/cm for the printing side and ≥40 dyn/cm for the lamination side. Substrates failing this are rejected immediately.
Phase II: Precision Balance of Vision & Chemistry (Printing & Lamination)

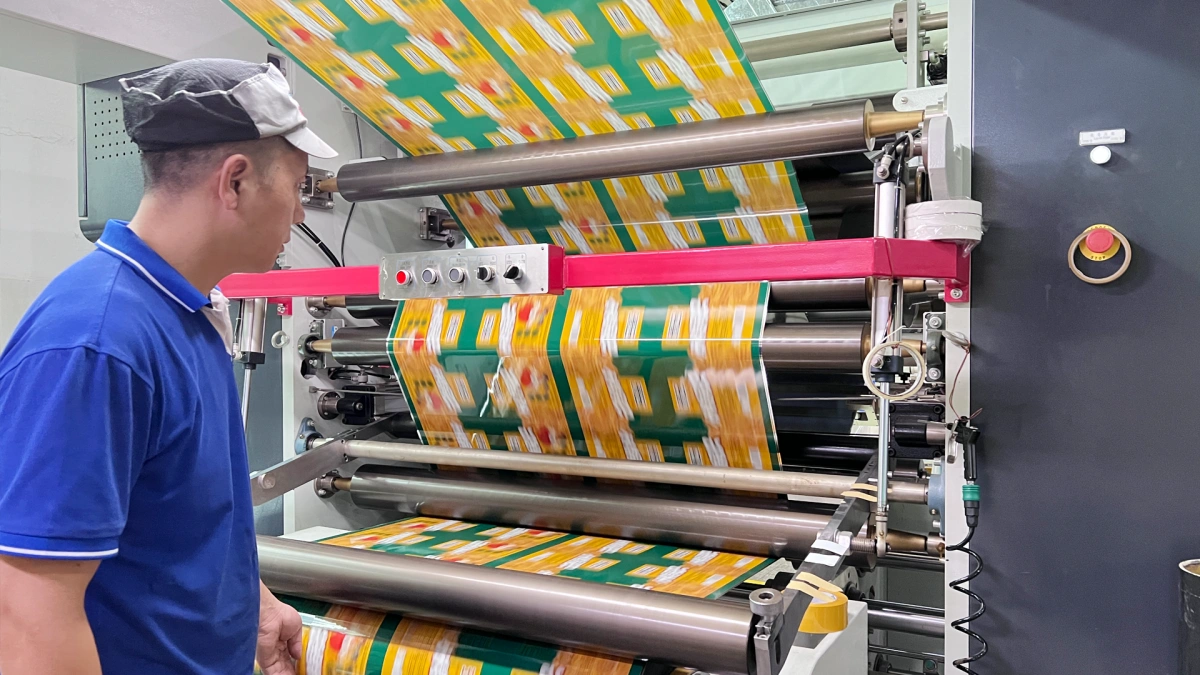

3. First Article Inspection (FAI)
- Operation: The first roll of any run is measured via spectrophotometer to compare Delta E values against the digital master.
- Tolerance: We maintain ΔE<2.0 for spot colors and ΔE<3.0 for process colors, ensuring zero brand-color deviation.
4. 100% Online Defect Scanning
- Technology: Our presses are equipped with high-resolution CCD industrial cameras (AI-driven inspection systems).
- Target: The system automatically detects and flags defects as small as 0.1mm, such as ink splashes, doctor blade lines, or missing print, generating a “defect map” for subsequent removal.
5. Solvent Residue Analysis (Gas Chromatography – GC)
- Lab Monitoring: Samples are analyzed via GC to ensure total residual solvents are <5.0mg/m2.
- Safety: Benzene-based substances must return a “Non-Detected” (ND) result, complying with the strictest global food safety regulations.
6. Coating Weight Verification
- Checkpoint: Exit-end of the solvent-less or dry lamination machine.
- Method: Precise weight-differential calculation ensures adhesive is applied uniformly, preventing “tunneling” or bubbling issues during shelf life.
Phase III: Structural Stability & Aging Simulation (Functional Testing)
7. Peel Strength Test
- Environment: Conducted after 24–72 hours of curing in our temperature-controlled rooms.
- Standard: We test the bond between layers (e.g., PET/AL) to ensure no delamination occurs during subsequent high-temperature sterilization or deep-freezing.
8. Coefficient of Friction (COF) Monitoring
- Value: Ensures pouches move smoothly through the client’s automated filling lines without sticking or slipping.
- Target: Static and kinetic COF are strictly controlled within the 0.15−0.25 range.
Phase IV: Precision Conversion & Physical Barriers (Bag Making & Final QC)

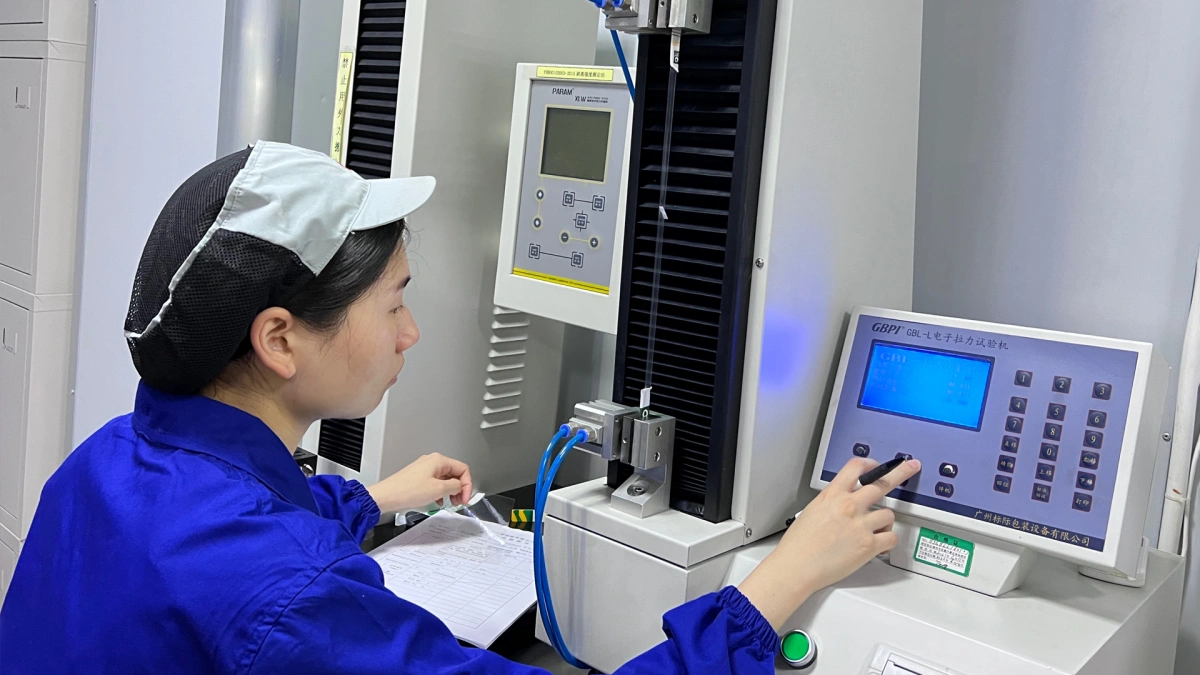

9. Heat Seal Strength Analysis
- Criticality: Simulates the stress at the bottom of the pouch after product filling.
- Testing: Tensile testers pull the seal to ensure it meets or exceeds 35N/15mm (adjusted based on material thickness).
10. Vacuum Leakage & Burst Testing
- Method: Finished pouches are submerged in a vacuum chamber at −90kPa.
- Red-line Metric: Zero bubbles within 30 seconds. This confirms a perfect barrier against oxygen and moisture (OTR/WVTR).
11. Puncture Resistance & Drop Testing
- Simulation: Mimics the impact of sharp-edged contents and accidental drops during transit to ensure the film’s structural toughness.
12. OQC & Traceability Verification
- Final Review: Verification of “Easy Tear” notch accuracy, zipper cycle life, and shipping mark precision.
- Traceability: Every batch is assigned a unique ID, allowing us to trace back to the specific operator, machine, and raw material lot.
Why Partner with Stanley Package?
At Stanley Package, quality control is not just a checklist—it is a commitment to data-driven reliability. Our 12-step protocol is designed to provide global manufacturers with an “inspection-free” delivery experience. We understand that a perfect pouch is the first line of defense for your brand’s reputation.
Partnership Invitation
We welcome global clients to visit our facility in person or via live video audits.
- Technical Support: We can customize QC standards for your specific application (Food, Chemical, or Electronics).
- Request Samples: Experience the quality of a product refined by 12 rigorous stages of inspection.
Stanley Package — Quality Defined by Data in Every Square Centimeter.
Contact us today for a technical consultation and quote.
